- Place of Origin: China
- Brand Name: xulian
- Model Number: LDS-5000

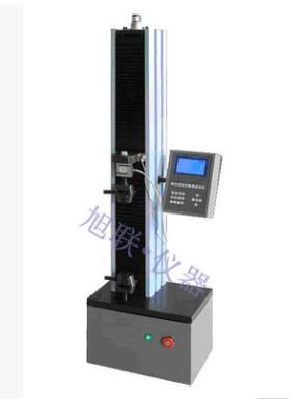

MWDS - 20, 20 man-made board bending machine is to be able to meet GB17657-1999 "man-made board and veneer man-made board the physical and chemical properties test method", for the bonding strength, surface bonding strength, surface bonding strength test, tensile test, bending test, static music intensity and elastic modulus test, holding screw force test and shear test of man-made board, man-made board and veneer man-made board for a variety of physical and chemical performance test research is man-made board quality inspection departments at all levels and production enterprise ideal test equipment, can provide you with accurate test results.
- Place of Origin: China
- Brand Name: xulian
- Model Number: LDS-5000
The machine type
Door type (liquid crystal display)
The biggest test force
10 kn 20 kn
Mode of operation
All Chinese menu operation
Test force along
Step step or not
Measuring range
2% - 100% of the maximum test force
The accuracy level
Level 1
The accuracy of test force
Superior to the value plus or minus 1%
Deformation shows error
Plus or minus or less (50 0.15 L)
Test force
Minimum resolution 0.01 N
Displacement measurement
A resolution of 0.01 mm
The deformation accuracy
Is better than that of plus or minus 1%
Speed range
1 mm/min ~ ~ 200 mm/min
Liquid crystal display content
Test force, displacement, peak, running state and running speed, etc
Stepless speed regulation
Use dc servo motor and control system
Test space adjusting mechanism
Private servers motor, synchronous belt transmission
The motor power
0.55 KW
Test schedule
100 mm (can be according to the customer demand customization)
Stretch space
600 mm (can be according to the customer demand customization)
Compression space
600 mm (can be according to the customer demand customization)
Size of the host
740 * 560 * 1700 mm
Outside view
Accord with national standard GB/T2611
systematic
Accord with a standard to ask
The test of protection function
Overload protection
Safety device
Limit switch
Power supply
50 hz, 200 v
Heavy volume
About 500 kg
The work environment
Room temperature ~ 45 ℃, humidity 20% ~ 80%
